• UltraClarity 9000 077 104 original Fridge Water Filter
1 5

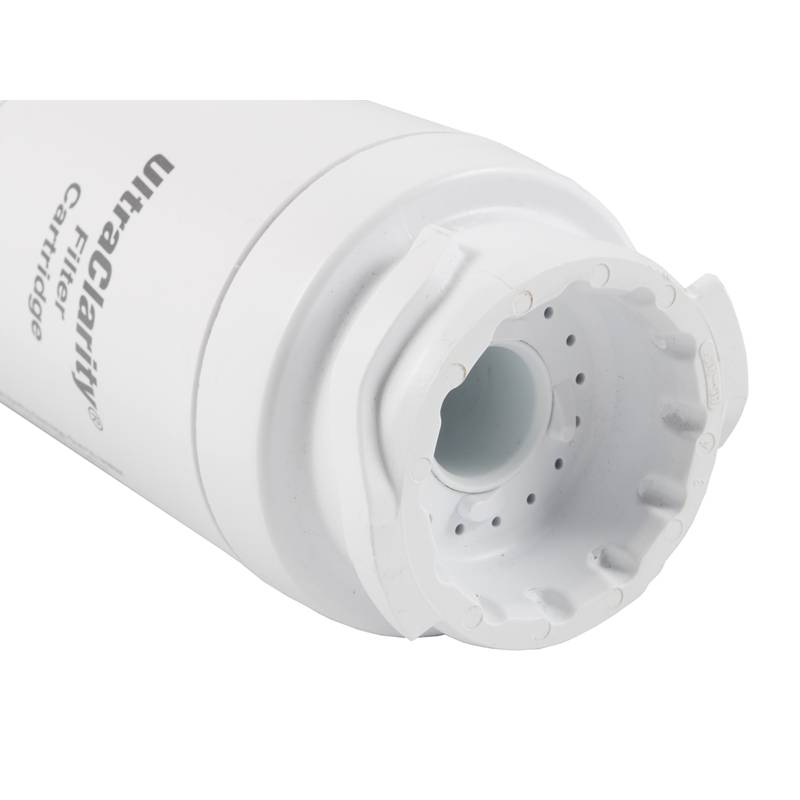

UltraClarity (9000 077 104) Original Fridge Water Filter

$75.00
$75.00 $88.00
Sale Sold out
Shipping calculated at checkout.

The UltraClarity (644845) fridge water filter for Bosch, Gaggenau, Miele, Neff & Siemens refrigerators Remplace 07134220, 641425, 644845, 9000 225 170, 9000 077 095, 9000 077 096

Out of stock

14 Days Return Policy | Free shipping on orders above 65 EUR | Secure payment
View full details

The 9000 077 104 (UltraClarity) water filter cartridge:

  • is an original internal refrigerator water filter
  • is a replacement cartridge for Balay, Bosch, Gaggenau, Miele, Neff & Siemens side-by-side refrigerators that have internally fitted slim water filter cartridges
  • is tested and Certified by NSF International against NSF/ANSI Standards 42 & 53
  • Balay, Bosch, Gaggenau, Neff & Siemens recommend replacement every 6 months
  • is manufactured by Cuno Inc. (country of origin USA)

The 9000 077 104 (644845) fridge filter replaces or is compatible with the following filter part numbers:

644845
UltraClarity
9000 077 104
9000 077 096
9000 077 095
9000 225 170
Bypass Cartridge
9000 193 914
667256
499850
9000 194 412
641425
IntensiveClear
07134220
KB1000

The 9000 077 104 water filter reduces the following health related contaminants:

  • 97.50% of Chlorine Taste and Odour
  • 99.00% of Particulates (Class I)
  • 99.99% of Cysts
  • 98.80% of Turbidity

Tested and Certified by NSF International against NSF/ANSI Standards 42 & 53. As with all built-in refrigerator water filters, the UltraClarity 9000 077104 does not remove Fluoride.

Note: The filter produces fresher water and ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. The contaminants or other substances removed or reduced by this water filter are not necessarilly in all user's water.

The 9000 077 104 (UltraClarity) water filter operating specifications are as follows:

  • Flow Rate
  • Operating Temperature
  • Operating Pressure
  • Technology
  • Function
  • Capacity
  • Service Life
  • Dimensions
2.83 lpm
min 0.6°C / max 38°C
min 207 kPa (30 psi) / max 827 kPa (120 psi)
Carbon block
Chemical and Mechanical Reduction
2 800 litres
6 months
approximately 5 cm x 21 cm

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Change filter at least every 6 months.

The 9000 077 104 refrigerator filter is compatible with the following fridges:

Balay

  • 3FAL4655

Bosch

  • KAD62V70
  • KAD62S50
  • KAD62V50
  • KAD62V00
  • KAD62A70
  • KAD62P90
  • KAD62V40
  • KAD62S20
  • KAD62xxx

Gaggenau

  • RY 491
  • RB 491
  • RF 411
  • RF 413
  • RF 461
  • RF 463
  • RF 471

Miele

  • KF 1801 Vi
  • F 1471 Vi
  • KF 1901 Vi
  • F 1911 Vi
  • F 1811 Vi
  • KF 1911 Vi
  • KF 1811 Vi
  • F 1411 Vi

Neff

  • K5920xx
  • K5930xx
  • K5920L0
  • K5930D0
  • K5950N0

Siemens

  • CI36BP00
  • FI24DP00
  • KA62DP90
  • FI24NP30
  • KA62DV70
  • KA62DS20
  • KA62DS50
  • KA62xxxx

Installation and replacement procedure for the 9000 077 104 fridge water filter:

Water filter (type one) is located in the base grille of the refrigerator and Water filter (type two) is located in the filter cover inside the refrigerator.

  • Turn the old cartridge by 90 - 180 degrees left (the water will shut off automatically).
  • Gently pull the old water filter out and discard.
  • Remove the handle from the used filter.
  • Remove the protective cover from new filter.
  • Push the handle onto the new cartridge.
  • Push the new filter into the position.
  • Turn the filter by 90 - 180 degrees right.
  • Run water through the dispenser for 3 minutes to purge the system.

  • Reset the "change filter" indicator light, if your fridge has one. Please refer to our FAQs on how to reset the "change filter" indicator light for a particular fridge manufacturer.

When to change a filter: The filter cartridge should be replaced when the replacement indicator light comes on or every 6 months.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty.
